Bespoke 3D Metal Tiles Made in the UK
Bespoke 3D Metal Tiles Made in the UK
Engineered for Simplicity

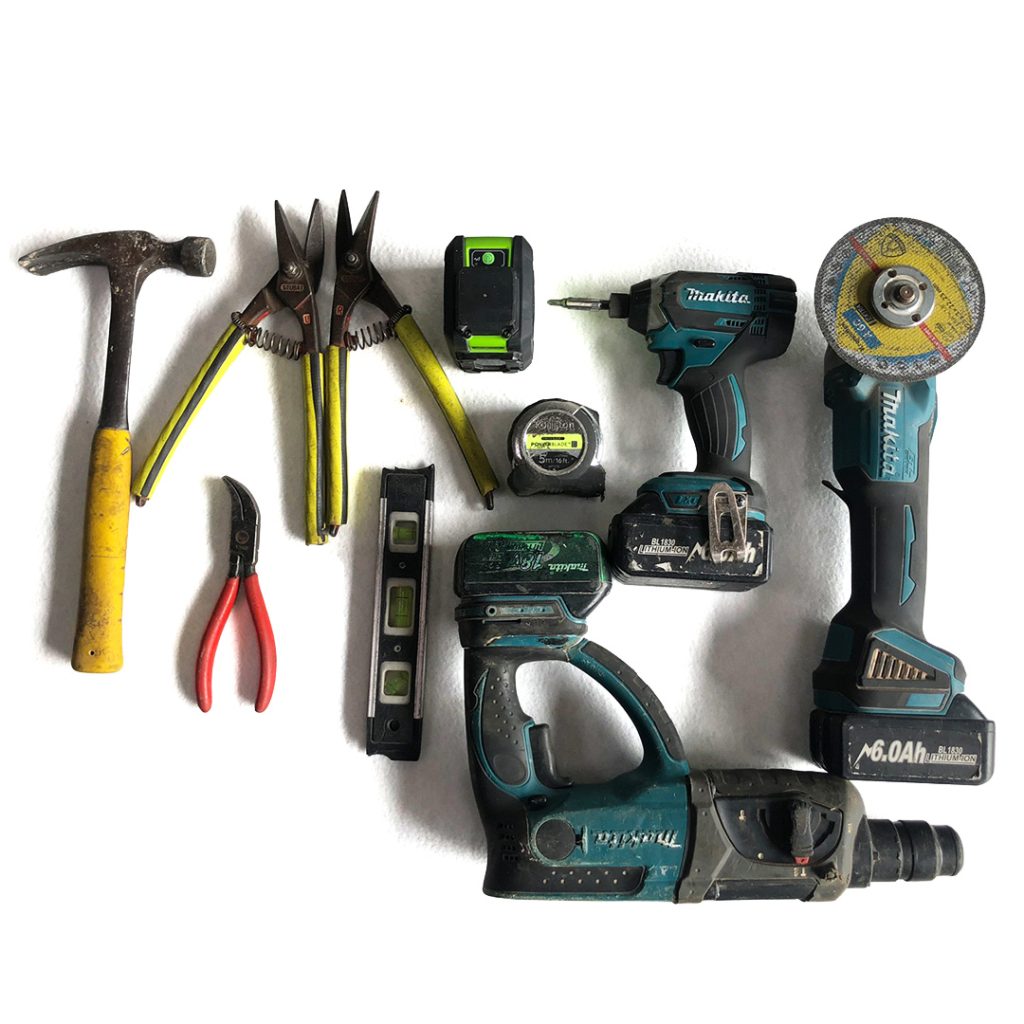

DASA 3D Metal Tiles are designed with a modular rail system, making installation fast, accurate, and consistent. Whether you’re a professional contractor or a confident DIY homeowner, you can achieve a flawless finish with the right tools.
We supply all railings, brackets, edge beads and screws with your order.
Please review all the steps before starting the installation.
Installation Tip:
If your wall or ceiling size cannot be divided evenly by 30cm, begin tiling from the centre. This ensures that the tiles finish evenly on both sides, giving a professional look.
Measure and cut the edge beads to create the frame for the section to be tiled. Depending on your preferred look, cut the ends either straight or at a 45° angle.
Cut the railings to fit inside the frame.
Snap both ends of the drywall brackets and attach them to the railings. Place brackets 150mm from each end and then every 400–500mm (depending on stud locations).

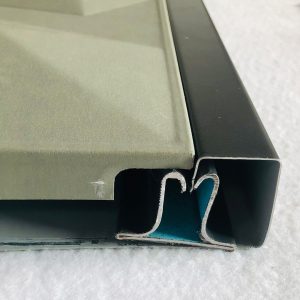

Snap the railings into the edge beads.

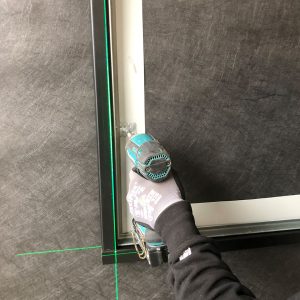

Fix the frame to the wall or ceiling. Secure through the bracket holes.
Important: all corners must be exactly 90°. A laser level is highly recommended.

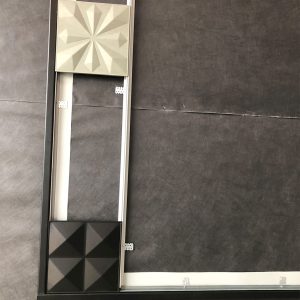

Measure and cut the rest of the railings for the longest runs (vertical or horizontal). Attach brackets as before in step 2 — 150mm from each end and then every 400–500mm.

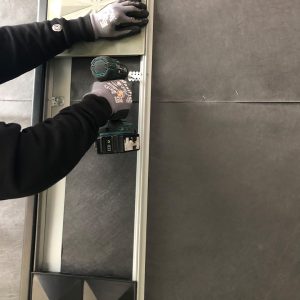

Snap one tile next to the end bead, then add the railing prepared in step 5.
Snap in a few tiles before fixing the railing with screws — this ensures the rail stays perfectly straight.
Repeat step 6 until all railings are fixed to the studs.
Simply snap in the remaining tiles for a seamless result.
London – Installed directly by our in-house team
Outside London – Work with our approved Installation Partners
